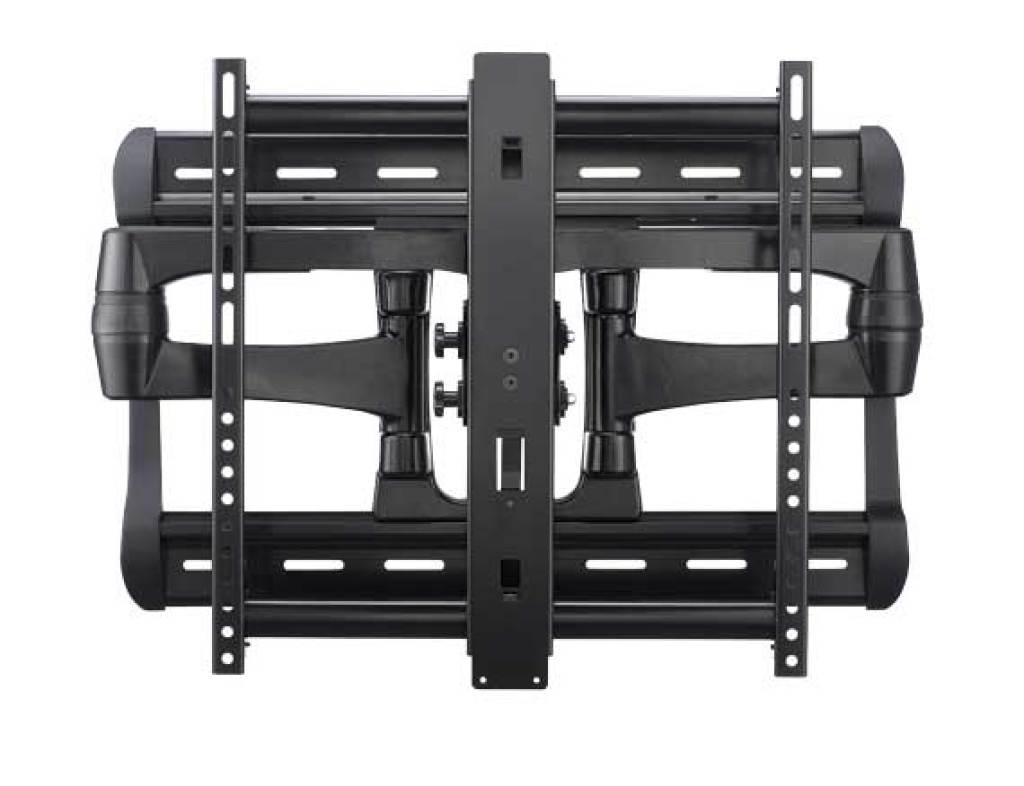

The SANUS HDpro™ Series XF228 features a pre-assembled interface and strong, ultra-light extruded aluminum wall plate for the quickest, easiest installation possible.Read More
The QuickConnect™ system allows the mounting head to snap onto the arm assembly with one easy movement and unlock with the push of a tab. ProSet™ post-installation height and leveling adjustments ensure the TV is always perfectly positioned after mounting. The XF228 arm assembly shifts left and right on the wall plate for easy TV centering, even with off-center wall studs. And the amazing FollowThru™ in-arm cable channel protects and completely conceals all cables without inhibiting movement, even through the elbow. Strong dual arms allow even the largest TVs to extend, retract, tilt and swivel up to 28" / 71.12 cm from the wall with ease. Virtual Axis™ tilting technology allows effortless viewing angle adjustment with the push of a finger. Universal mounting brackets. Mount now fits TVs 42” – 90” weighing up to 175 lbs, and all current XF228 models have been tested for compatibility with the updated size range.
Conceal unsightly cables
Easily adjust the height of your TV
Easily adjust your TV without tools
Enjoy a great picture no matter where you watch
Expandable TV brackets ensure a perfect fit
HDpro™ product specially created for the custom installer
Hardware included
Leveling adjustments allow TV to be perfectly positioned after hanging
Our TV Mount products are Safety Tested and UL Certified
Slide TV side-to-side for perfect positioning on the wall
Swivel your TV left and right for the perfect view
TV “clicks” into place for a safe connection you can hear
Tilt your TV for perfect viewing from the couch or floor
7/32" Drill Bit
3/8" Masonry Bit (Concrete Installations)
1/2" Socket Wrench
Awl
Electric Drill
Hammer
Level
Pencil
Phillips Head Screwdriver
Stud Finder
Tape Measure
General Specs | |
| Product Weight (lbs.) | 54.2 |
| Tilt | Yes |
| Width (in.) | 34.02 |
| Height (in.) | 23.75 |
| Mount Type | Full Motion (Articulating) |
| TV Size's up to (in.) | 90 |
General | |
| Depth | 3.25" - 28.00" / 8.26cm - 71.12cm |
| Package (WxHxD) | 37.50" x 5.80" x 25.50" |
| TV Size Range | 42" - 90" / 106.68cm - 228.60cm |
| Maximum TV Weight | 175lbs / 79.38kg |
| Universal Mounting | Yes, 120 x 48 through 850 x 549 |
| Tilt | 5° / -15° |
| Roll | 5° / -5° |
| Swivel | 75° / -75° |
