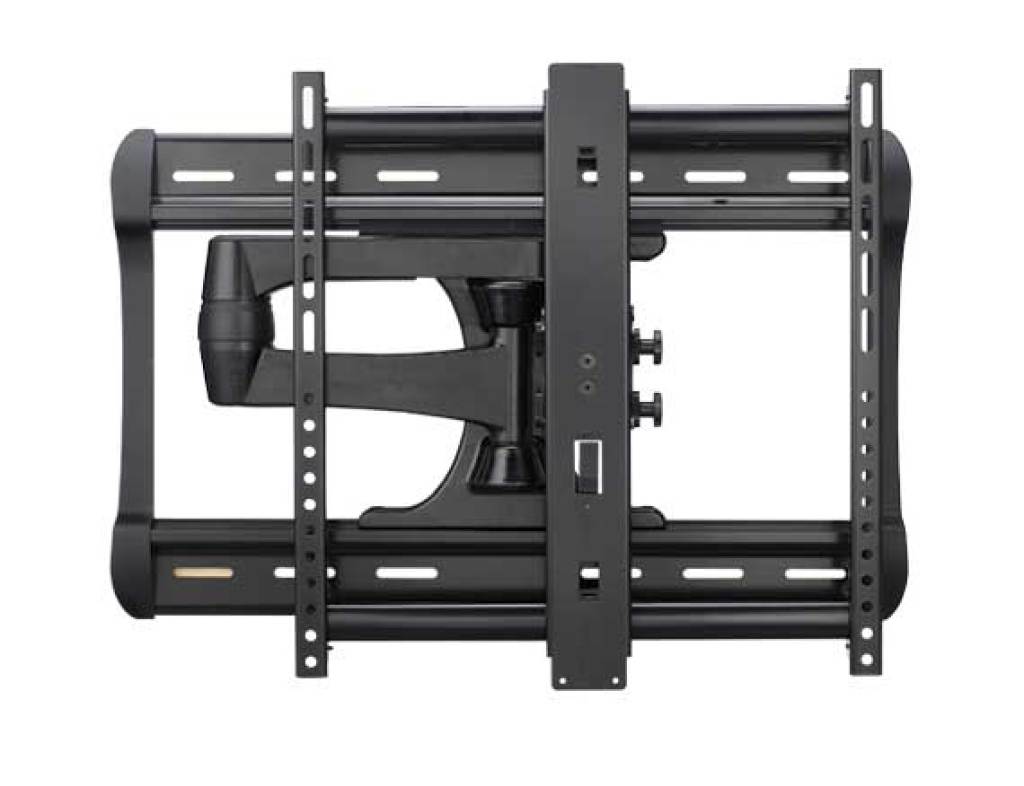

Sanus® HDpro™ Series Black Full-Motion Wall Mount

Model #: LF228-B1

At a Glance

Its pre-assembled interface and strong, ultra-light extruded aluminum wall plate allows the easiest and quickest installation possible. The QuickConnect™ system allows the mounting head to snap onto the arm assembly with one easy movement and unlock with the push of a button. ProSet™ post-installation height and leveling adjustments ensure TVs are always perfectly positioned after mounting. The LF228 arm assembly shifts left and right on the wall plate so the TV is always centered, even if wall studs are not. And the amazing FollowThru™ in-arm cable channel protects and completely conceals all cables without inhibiting movement, even through the elbow. Its strong extension arm allows large TVs to extend, retract, tilt and swivel up to 28" / 71.12 cm from wall with ease. Virtual Axis™ tilting technology allows effortless viewing angle adjustment with the touch of a finger. Universal mounting brackets. Mount now fits TVs 37” – 65”, and all current LF228 models have been tested for compatibility with the updated size range.

• Conceal unsightly cables
• Easily adjust the height of your TV
• Easily adjust your TV without tools
• HDpro™ product specially created for the custom installer
• Hardware included
• Our TV Mount products are Safety Tested and UL Certified
• Slide TV side-to-side for perfect positioning on the wall
• Swivel your TV left and right for the perfect view
• Tilt your TV for perfect viewing from the couch or floor

Tools You Will Need For Installation

• 7/32" Drill Bit
• 3/8" Masonry Bit (Concrete Installations)
• 1/2" Socket Wrench
• Awl
• Electric Drill
• Hammer
• Level
• Pencil
• Phillips Head Screwdriver
• Stud Finder
• Tape Measure
